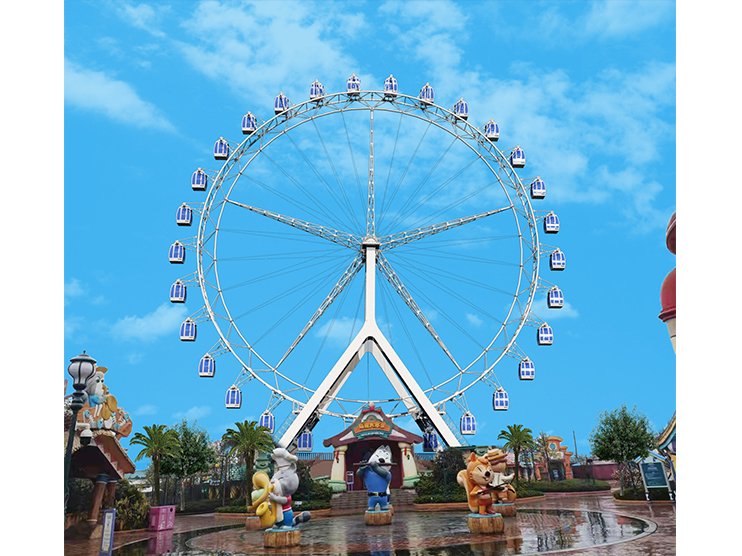

The 49 meter zigzag column Ferris wheel adopts a steel cable support arm structure. The rotating wheel of this machine is connected to the central shaft part by 5 support arms, and 60 steel cables are staggered to connect the central shaft part. The hanging box is installed and fixed through the hanging box bracket fixed on the outer edge of the rotating wheel. The driving platform is equipped with 8 sets of driving devices, each set of driving devices is driven by a motor to rotate the rotating wheel through friction wheels, thereby driving the hanging box to make circular motion. Passengers sit in the hanging box, and as the hanging box slowly rises and looks out through the window, their view gradually widens, and the surrounding beautiful scenery can be seen in full.
|
Equipment height |
49.8m |
run time |
About 12min |
Number of cabins |
30 of them |
|
person capacity |
120 people |
Rotation diameter |
45.7m |
Drive power |
24KW |
|
Installed capacity |
122KVA |
cover an area |
24m×16m |
lighting |
User |
